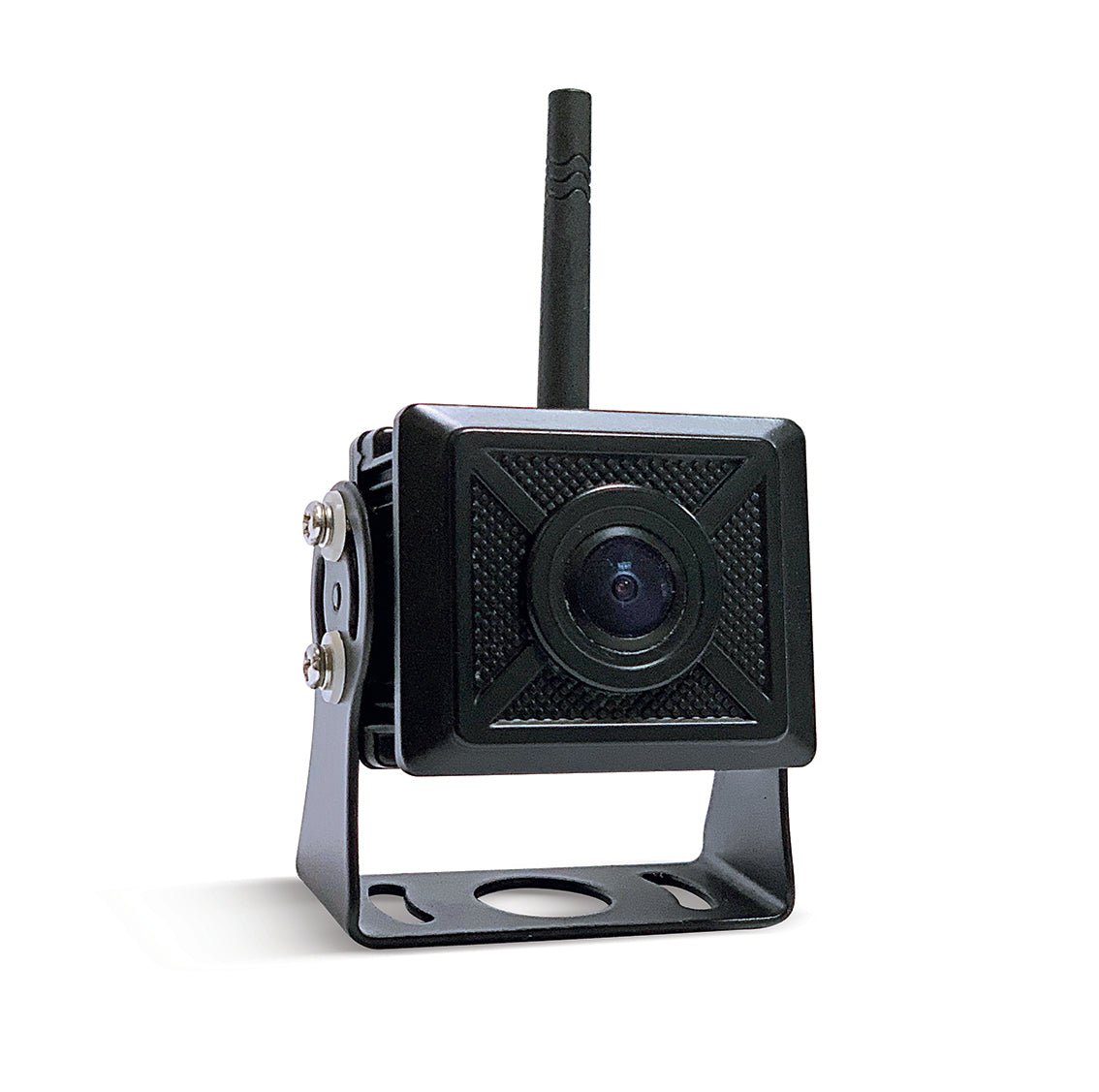

Hema Heavy Duty Wi-Fi Reversing Camera
Hema's Heavy Duty Wi-Fi Reversing Camera used in conjunction with the Hema HX-2 Navigator offers enhanced rearward visibility for drivers and, thus, helps minimise the risk of "blind zone" accidents whenever your vehicle or trailer is moving in reverse.
This heavy-duty wireless backup camera helps you easily spot vehicles, pedestrians, pets and other hard-to-see obstructions behind your vehicle or trailer.
The camera is IP69K rated providing protection against ingress of dust and high temperature, high-pressure water.
Key Features
- COMPATIBILITY - Works seamlessly with Hema HX-2 Navigator
- WIDE FIELD OF VIEW - 150-degree wide-angle field of view; shows what’s behind your vehicle when in reverse
- BUILT-IN WI-FI - Built-in Wi-Fi® connectivity transmits live camera view from the reversing camera directly to your HX-2 navigator’s display
- WIRELESS RANGE - Transmits camera footage up to 70M away (range varies based on installation)
Key Specifications
| Compatibility | WIFI | Hema HX-2 GPS Navigator | |
| Function | Power ON | 1.0 S | |
| Latency | 120ms | ||
| Resolution | VGA | ||
| Frame Rate | 30f/s | ||
| Video Codec | MPEG4 | ||
| Video in System | PAL | ||
| Video Characteristics |
Diagnol Viewing Angle | 150 degrees | |
| Video Output impedance | 75Ω, Typ | ||
| Video Output Level | 1.2 Vp-p, Typ. | ||
| S/N | 50dB, Min | ||
| RF Specification | Operation Frequency | 2412 ~ 2483.5MHz (WIFI 802.11 g/n) | |
| RF Impedance | 50Ω, Typ. | ||
| Receiving Sensitivity | -89dBm | ||
| Output Power | 12dBm | ||
| RF Bit Rate | 11Mbps | ||
| Modulation | QPSK,16QAM | ||
| Channel | CH1 to CH13 | ||
| DC | Power Supply | DC 9-16V/200mA | |
| Environmental Specification |
Operating Temperature | -20°C~70°C | |
| Storing Temperature | -30°C~85°C | ||
| Operating humidity | Humidity 90% | ||
| Waterproof rating | IP69K | ||
| Light rating | 0.2 Lux | ||
| Others | Unit Dimension(mm) | 48 x 40 x 36mm | |
| Unit Weight | Item weight: 199g | ||
Package includes:
- Hema Heavy Duty Wi-Fi Reversing Camera
Packaging Specifications
Release Date: 01/10/22
Box size (WxH):130mm x 55mm
Box Weight: 0.106kg
Suits: Hema HX-2 Navigator
Control: Via HX-2 Camera App
Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Following install, the camera operates via Wi-Fi. Wi-fi signal performance can be impacted by obstructions.
