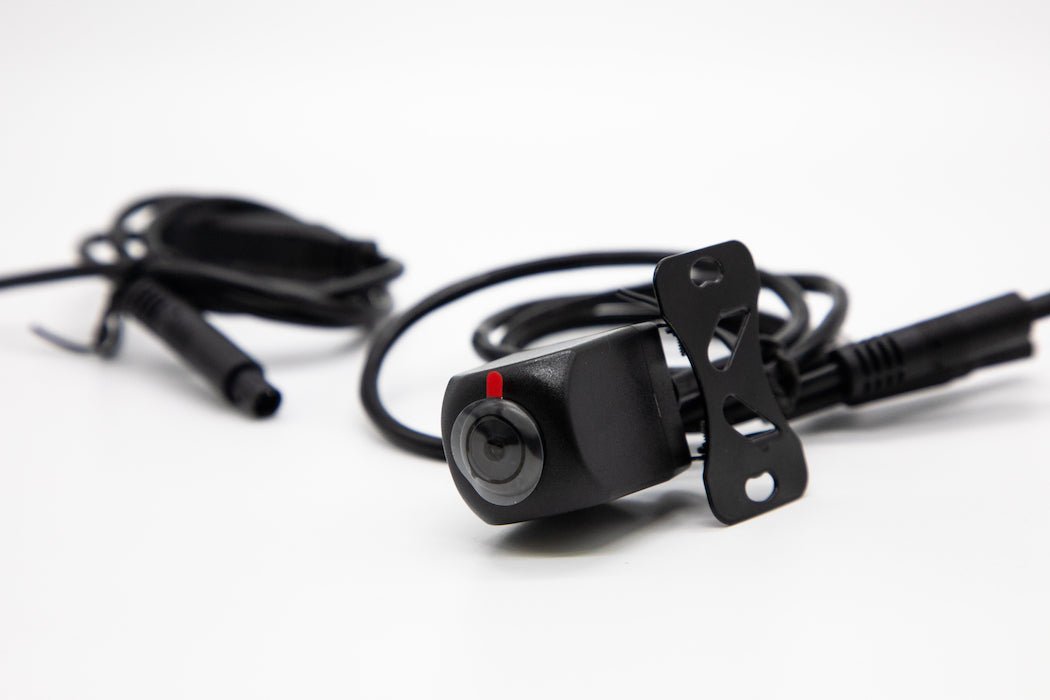

Hema Wi-Fi Reversing Camera

Name: Hema Wi-Fi Reversing Camera
Brand: Hema Maps - Digital
SKU: 9321438002475
Price: 199.0 AUD
Availability: InStock
Rating: 5.0 (1 reviews)

Description

Minimise the risk of "blind zone" accidents

Hema's Wi-Fi reversing camera used in conjunction with the Hema HX-2 Navigator offers enhanced rearward visibility for drivers and, thus, help minimise the risk of "blind zone" accidents whenever your vehicle is moving in reverse.

This wireless backup camera helps you easily spot vehicles, pedestrians, pets and other hard-to-see obstructions behind your vehicle.

The camera is IP69K rated providing protection against ingress of dust and high temperature, high pressure water.

Key Features

- COMPATIBILITY - Works seamlessly with Hema HX-2+ and HX-2 Navigator
- WIDE FIELD OF VIEW - 140-degree wide-angle field of view; shows what’s behind your vehicle when in reverse
- BUILT-IN WI-FI - Built-in Wi-Fi® connectivity transmits live camera view from the reversing camera directly to your HX-2 navigator’s display
- WIRELESS RANGE - Transmits camera footage up to 30M away (range varies based on installation)

Key Specifications

Receive	WIFI	Android OS
Function	Power ON	1.0 S
	Latency	120ms
	Resolution	VGA
	Frame Rate	30f/s
	Video Codec	MPEG4
	Video in System	PAL
Video Characteristics	Video Output impedance	75Ω, Typ
	Video Output Level	1.2 Vp-p, Typ.
	S/N	50dB, Min
RF Specification	Operation Frequency	2412 ~ 2483.5MHz (WIFI 802.11 g/n)
	RF Impedance	50Ω, Typ.
	Receiving Sensitivity	-89dBm
	Output Power	12dBm
	RF Bit Rate	11Mbps
	Modulation	QPSK,16QAM
	Channel	CH1 to CH 13
DC	Power Supply	DC 9-16V/200mA
Environmental Specification	Operating Temperature	-20°C~70°C
	Storing Temperature	-30°C~85°C
	Operating humidity	Humidity 90%
	Waterproof rating	IP69K
	Light rating	0.2 Lux
Others	Unit Dimension(mm)	45 x 48 x 15.6mm
	Unit Weight	Item weight: 50.0g

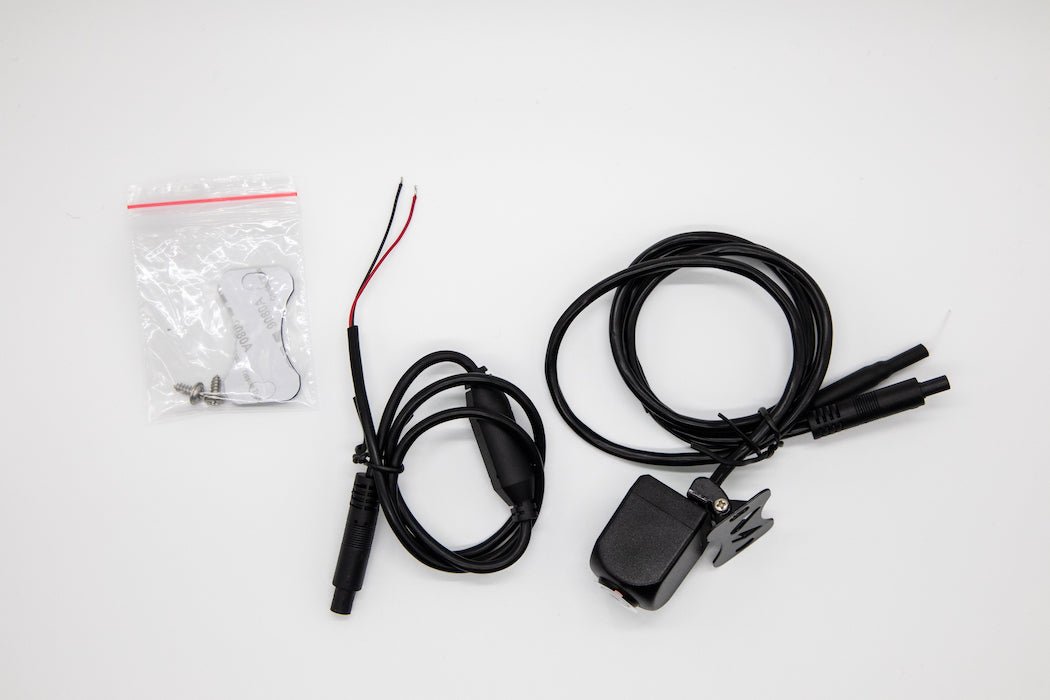

Package includes:

HX-2 Reversing Camera

Packaging Specifications

Release Date: 01/11/21
Box size (WxH):130mm x 55mm
Box Weight: 0.106kg
Suits: Hema HX-2 Navigator
Control: Via HX-2 Camera App

Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Following install, the camera operates via Wi-Fi. Wi-fi signal performance can be impacted by obstructions. This device is designed specifically for vehicle use and performance with camper trailers/caravans may vary.
